Features

Description

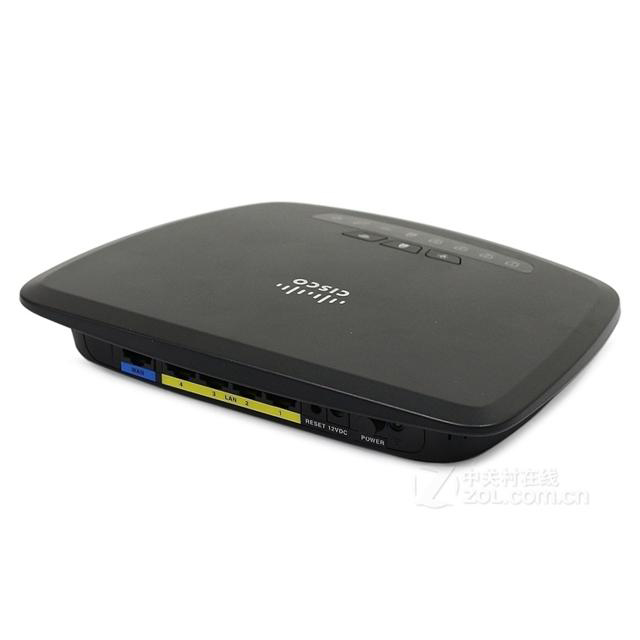

WAN

One 10/100 Mbps RJ-45 connector for WAN port

LAN

Four 10/100 Mbps RJ-45 connectors for LAN ports

Wireless

Built-in 802.11n wireless access point (two antennas)

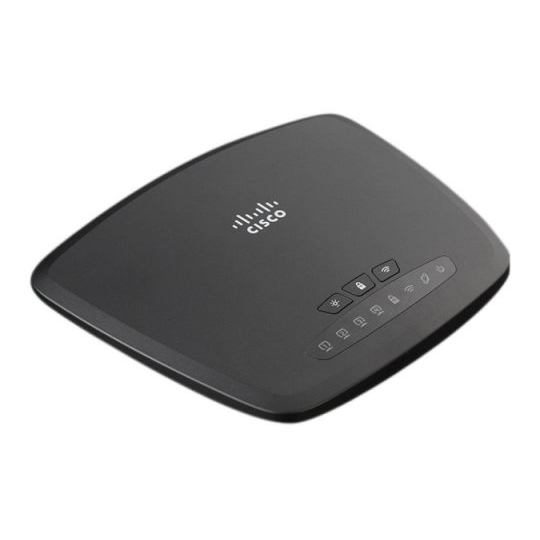

LED

LAN1-4, WPS, Wireless, WAN, Power, and Do-Not-Disturb indication

Buttons/switches

Power, RESET, WPS, Wireless, and Do-Not-Disturb mode control

Do-Not-Disturb button

The Do-Not-Disturb button is used to turn the LEDs on the front panel on and off. Turning this button on or off will not affect the normal operation of the CVR100W.

When this button is turned on, all lights on the front panel are off and the Do-Not-Disturb indication light on the back panel is solid green.

When this button is turned off, all lights on the front panel are on and the Do-Not-Disturb indication light on the back panel is off.

Product dimensions (W x H x D)

106 in. x 94 in. x 26 in. (270 mm x 238.6 mm x 66 mm)

Weight

0.84 lb (0.38 kg)

Power supply

12V/0.5A

Cabling type

Category 5e or better

Certifications

SRRC, CE, CB, Wi-Fi

Operating environments

Operating temperature: 0° to 40°C (32°to 104°F)

Storage temperature: -30° to 60°C (-22° to 140°F)

Operating humidity: 10% to 85% noncondensing

Storage humidity: 5% to 95% noncondensing

Features

Description

Routing

Static routing

Routing Information Protocol (RIP) versions 1 and 2

Inter-VLAN routing

Layer 2

802.1Q-based VLAN

6 active VLANs (VLAN ID Range: 4 to 4094)

Layer 3

Dynamic Host Configuration Protocol (DHCP) Server

Point-to-Point Protocol over Ethernet (PPPoE)

Point-to-Point Tunneling Protocol (PPTP) pass-through

Layer 2 Tunneling Protocol (L2TP) pass-through

DHCP relay agent

IGMP proxy and snooping

Dynamic Domain Name System (DynDNS): oray.com and 3322.org

Network Access Translation (NAT) and Port Address Translation (PAT)

Port management

Port mirroring

IPv6

IPv4/IPv6 dual stacks

IPv6 to IPv4 tunneling

Multicast Listener Discovery (MLD) for IPv6 (RFC2710)

Stateless address auto-configuration (SLAAC)

DHCPv6 Server for LAN IPv6 clients

DHCPv6 Client WAN connection

Internet Control Message Protocol (ICMP) version 6

IPv6 static routing

RIP Next Generation (RIPng): IPv6 Dynamic Routing

Security

Stateful packet inspection (SPI) firewall

Port forwarding and port triggering

Access control lists (ACL) and content filtering

DoS prevention

Wireless MAC address filtering

Static URL or keyword filtering

Access control by schedule

Web-based configuration utility (HTTP and HTTPS)

Self-signed SSL certificateuting

VPN

Up to 3 IPsec VPN tunnels by using the Cisco QuickVPN software

PPTP, L2TP, and IPsec VPN passthrough

1 IPsec site-to-site tunnel

Quality of service

802.1p-based priority on LAN ports and application-based priority on WAN ports

4 queues

Differentiated services code point (DSCP)

Class of service (CoS))

Bandwidth control

Management

Local logs, system logs, and remote logs

Upgrade the firmware from the web-based device manager

Import and export system configuration (.txt)

Remote management using the HTTP or HTTPS protocol)

Bonjour and Universal Plug and Play (UPnP)

Network diagnostics: Ping, traceroute, and DNS lookup

Performance

NAT throughput: 90 Mbps

Maximum new connections: 750

Maximum concurrent connections: 15,000

VPN throughput: 5 Mbps

Features

Description

Wireless radio

IEEE 802.11n wireless access point; complies with 802.11b/g

Wireless radio modes:

802.11b: Direct-Sequence Spread Spectrum (DSSS)

802.11g/n: Orthogonal Frequency-Division Multiplexing (OFDM)

2 built-in omnidirectional antennas with 1.8 dBi gain

Wireless channels:

13 selectable wireless channels

Automatic channel selection

Transmit power:

802.11b: 17 dBm +/- 1.5 dBm

802.11g: 15 dBm +/- 1.5 dBm

802.11n: 12.5 dBm +/- 1.5 dBm

Receiver sensitivity:

-87 dBm at 11 Mbps

-71 dBm at 54 Mbps

-68 dBm at msc15, HT20; -66dBm at mcs15, HT40

Wireless adjustment

Press the Wireless button to enable or disable the wireless module

Adjustable Wi-Fi power: OFF, 50%, 100%

Wireless Distribution System (WDS)

Up to 3 wireless access points to repeat the wireless signals

Wi-Fi Multimedia (WMM)

WMM (802.11e) and WMM Power Save (U-APSD)

Maximum number of connected wireless client stations

32 active wireless client stations simultaneously

Maximum number of active SSIDs

4 active SSIDs simultaneously

Isolation

Station isolation

Security

Wi-Fi Protected Setup (WPS) 2.0

Wired Equivalent Privacy (WEP)

Wi-Fi Protocted Access (WPA)-Personal/Enterprise

WPA2-Personal/Enterprise

Cisco Simple Connect

Provides a safe and convenient way for smart devices to connect internet via CVR100W.
